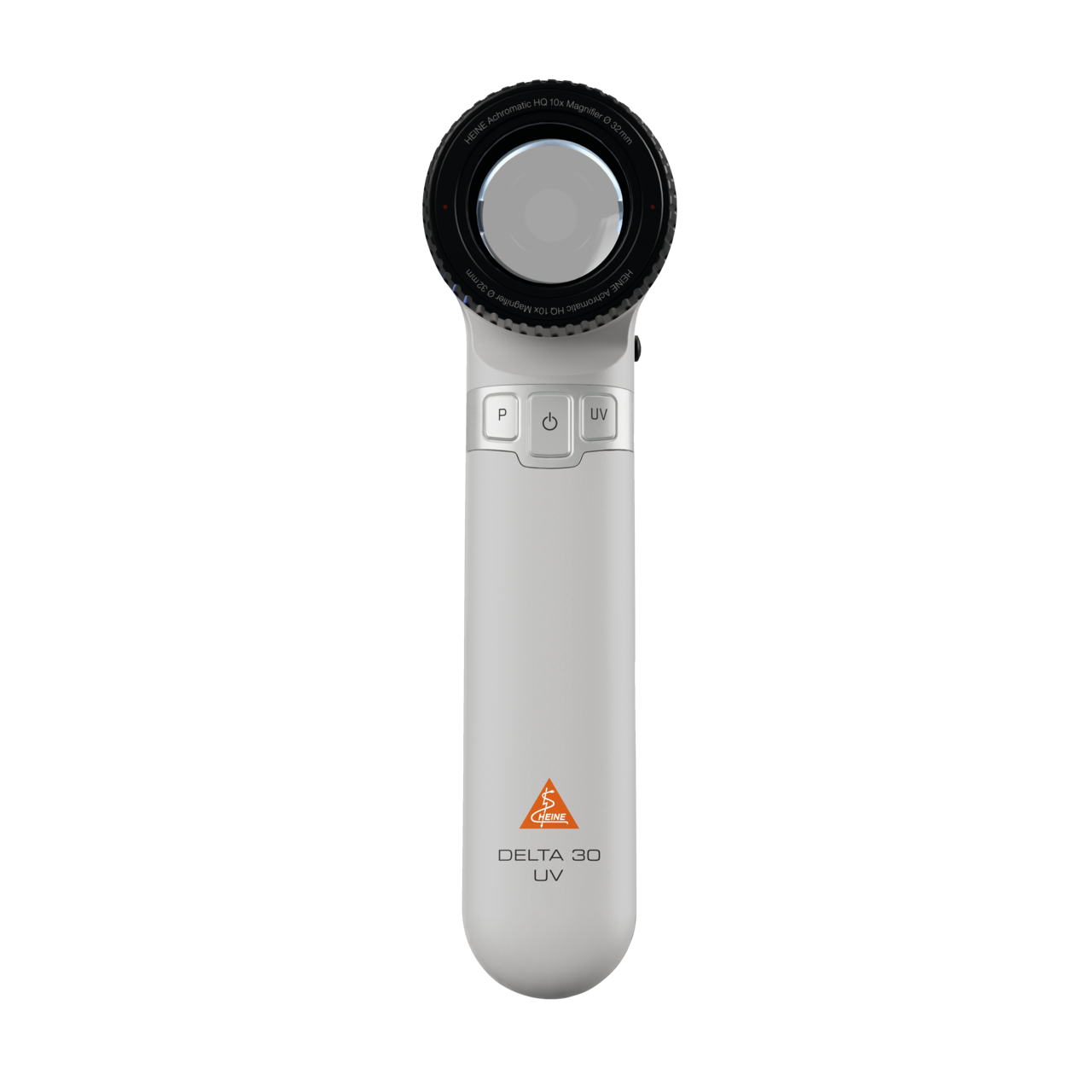

HEINE DELTA 30 UV Dermatoscope Ultimate

What if one dermatoscope could cover all your diagnostic needs?

The new HEINE DELTA 30 UV Dermatoscope supports precise diagnostics under limited time, allowing you to focus on what matters most: your patients. Its intuitive handling and seamless integration of multiple illumination options streamlines examinations and supports confident clinical decision-making.

Beyond skin cancer screening, daily practice involves assessing a wide range of skin conditions. With the HEINE DELTA 30 UV, there is no need for additional lamps or time-consuming equipment. It combines high-contrast polarised and non-polarised light with integrated UV illumination in one advanced dermatoscope – bringing relevant diagnostic insights together with ease.

Beyond the known: Exceptional optics

Designed to reveal subtle details – even at the margin of a lesion. A 32 mm lens with 10x magnification provides an ultra-sharp 30 mm Ø field of view with galactic clarity. The manual focus offers full flexibility to adapt to your individual examination needs – whether viewing from a distance, at an oblique angle, or close to the dermatoscope.

Unbounded universe: Toggle between illuminations

Non-polarised and polarised light for enhanced reflexion and contrast. UV light for additional diagnostic insight. Conveniently alternate between illumination options with the push of a button – all combined into one advanced HEINE dermatoscope.

Pure spectrum: Specialized filters for consistent illumination

Twelve UV LEDs with a wavelength of typically 365 nm provide uniform illumination of the examined area. Specialized filters ensure pure, consistent UV light while eliminating stray wavelengths – enhancing fluorescence contrast for clear and reliable visualization.

Celestial Lightness: Intuitive handling

Every control serves a clear purpose and provides precise tactile feedback. The result is intuitive handling designed for everyday clinical use. Everything you need. Nothing more. But also, never less.

From another galaxy: Proven features of the HEINE DELTA 30 series

• Top mounted manual dioptre adjustment: Individually adjust the ocular to maintain consistently sharp, shadow-free illumination – without changing the distance to the skin.
• Sharpness from every angle: The angled LED HQ arrangement enhances visual depth, optimises clarity, and reduces reflections.
• Glare protection: The recessed lens design minimises stray light and offers a natural dimming.
• Reproducibility: The contact plate ensures an optimal distance to the skin for reliable and reproducible results.
• Mobile use: Equipped with the latest battery technology, the device delivers more than a full day of operation under normal clinical use. The battery level indicator and automatic switch-off function help to prevent you from unexpected interruptions.
• Robust design: The lightweight aluminium frame is robust and durable – built for long-term clinical use and resistant to mechanical stress.

6. A universe full of possibilities: Always the right HEINE accessories

• HEINE diSTANCE Working Ring: Skin lesions can be examined without pressure and direct skin contact using the HEINE diSTANCE Working Ring.
• HEINE Contact Plates: Choose between a small contact plate or a larger contact plate with an integrated scale – depending on your clinical needs.
• HEINE Charger 30 Table Charging Station: The compact charger offers convenient table top storage for your dermatoscope, supports fast charging in about 120 minutes, and automatically stops to prevent overcharging.
• HEINE Universal Smartphone Adapter mag: The adapter enables digital dermatoscopic documentation via smartphone by magnetically attaching the HEINE dermatoscope to your device.
• Protective case: The zippered etui protects your HEINE dermatoscope from environmentally caused damage and scratching.

Complete your universe with the HEINE DERManager digital documentation software.

Capture, store, and organise dermatoscopic images digitally. Keep track of every lesion with structured image management and comparison over time.

Embark on a journey to the next HEINE galaxy with us.

As pioneers of the first dermatoscope, making your daily clinical life easier has always been our priority. For 80 years now, HEINE has combined advanced diagnostic components into seamless solutions – delivering holistic systems from a single source.

Purchase your HEINE DELTA 30 UV Dermatoscope now.
